TY CH540 Macroporous N-methylglucamine Chelating Resin

TY CH540 Macroporous N-methylglucamine Chelating Resin

Lanlang ® TY CH540 is a sort of chelate resin which has weakly basic N-methylglucamine on the styrene and DVB copolymer with special macroporous structure. It has unique functionality which makes it extremely selective for borate.

product-716-286

Products Description



Lanlang ® TY CH540 is a chelate resin that features weakly basic N-methylglucamine on the styrene and DVB copolymer with unique macroporous structure. This resin is highly effective in selectively removing borates from various applications, including potable water, ultrapure water, and concentrated brine solutions.


TY CH540 stands out among chelate resins due to its selectivity for borate removal. It has been carefully designed to provide excellent performance in all borate removal applications. Additionally, TY CH540 is supplied in the free base, adding to its versatility and ease-of-use.


Lanlang ® TY CH540 is widely used for boron removal in both municipal and industrial settings. With its unique properties, it can effectively remove borates from drinking water, ultrapure water, and other industrial water applications. The resin's advanced macroporous structure provides excellent flow rate, ensuring high levels of efficiency and cost-effectiveness in borate removal processes.



TY-CH530-

Overall, Lanlang ® TY CH540 is an ideal solution for any borate removal application and should be considered a top choice for those looking for high-performance and reliable chelate resins. Its unique functionality and selectivity offer optimum borate removal outcomes, and it is widely trusted by professionals in the field.

Product details 2

Competitive Equivalents

  • Purolite S108
  • DowDowex
  • Resin Tech
  • Bayer Lewatit
  • Amberlite
  • Duolite
  • Sybron S-3
  • Mitsubishi Diaion
  • Jacobi Resinex  BR-1
  • Ion exchange India Indion



Basic Features



Application:

Boron Removal

Polymer matrix structure:

Macroporous polystyrene crosslinked with divinylbenzene (DVB)

Appearance:

Spherical beads

Functional Group:

N-methylglucamine

Ionic form as shipped:

Free Base



Hydraulic Properties



product-623-391



product-640-402

PRESSURE LOSS



BACKWASH

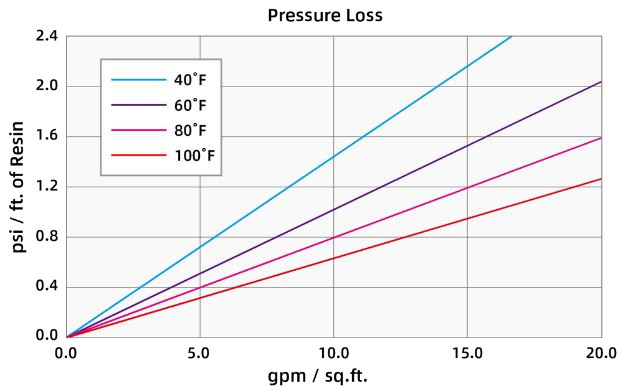

The graph above shows the expected pressure loss of Lanlang TY CH540 per foot of bed depth as a function of flow rate at various temperatures.

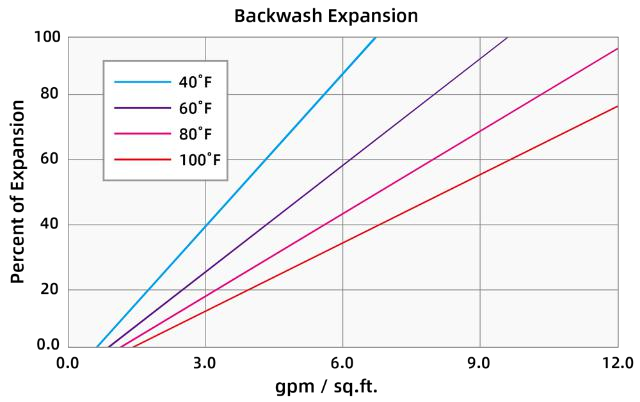

The graph above shows the expansion characteristics of Lanlang TY CH540 as a function of flow rate at various temperatures.
