TY CH510 Macroporous Thioureido Chelating Resin

TY CH510 Macroporous Thioureido Chelating Resin

Lanlang® TY CH510 is a macroporous type chelating resin with thiourea functionality. It has very high selectivity for mercury and platinum group metals such as platinum, gold and silver. TY CH510 is stable over the whole pH range. The applications include mercury removal from brine and effluent in chloralkali process, mercury removal from flue gas scrubber effluent, recovery of platinum group metals from effluents amongst others.

product-716-286

Products Description



Lanlang® TY CH510 is a highly selective macroporous chelating resin with thiourea functionality. Its superior selectivity for mercury and platinum group metals such as platinum, gold, and silver make it an essential product in various applications.


This resin is stable over the whole pH range, making it ideal for processes that require a wide range of pH levels. TY CH510 is commonly used for mercury removal from brine and effluent in chloralkali processes, as well as for mercury removal from flue gas scrubber effluent. Additionally, it is used for the recovery of platinum group metals from effluents in different processes.

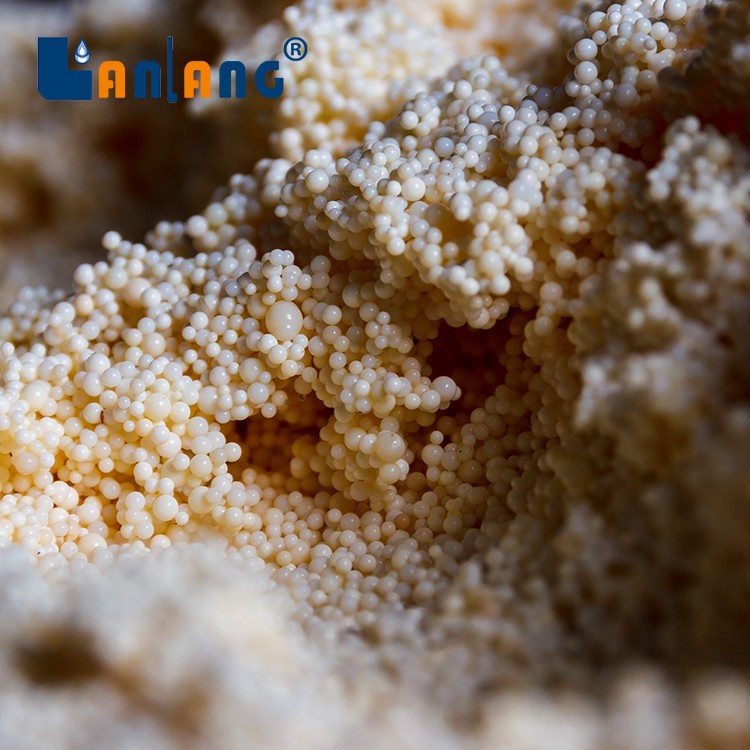

TY-CH530-

TY CH510's superior selectivity for mercury and platinum group metals makes it an ideal choice for a wide range of industrial processes. It offers excellent performance, stability, and reliability in a variety of applications.TY CH510 is more resistant to oxidation than other sulfur-based resins and is not afraid of contact with air, but free chlorine and strong oxidants will destroy it, which must be removed by activated carbon filtration.

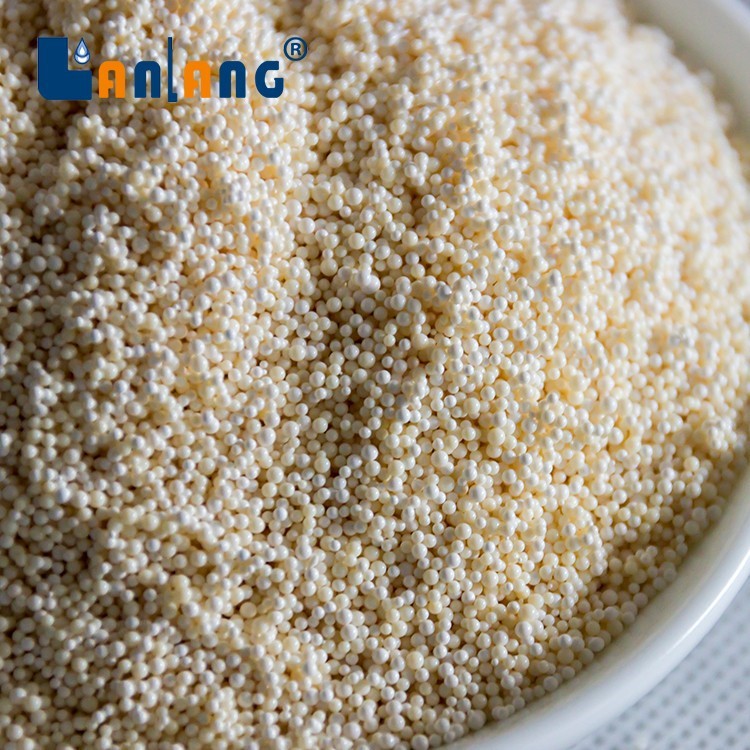

Product details 2

Competitive Equivalents

  • Purolite MTS9200
  • DowDowex XZ95844
  • Resin Tech SIR-200/400
  • Bayer Lewatit TP214
  • Amberlite GT73
  • Duolite
  • Sybron SR-4/3
  • Mitsubishi Diaion
  • Jacobi Resinex  CH-80
  • Ion exchange India Indion TCR



Basic Features



Application:

Mercury Selective removal

Recovery of precious metals and gold

Polymer matrix structure:

Macroporous polystyrene crosslinked with divinylbenzene

Appearance:

Milky white opaque spherical beads

Functional Group:

Thioureido

Ionic form as shipped:

H+



Suggested Operating Conditions



NO.

ITEM

SPEC

1

Max operating temperature

80 ℃

2

PH range

1-13

3

Service flow rate

5-16 BV/h

4

Regenerate

7-8% HCl
