Products Description

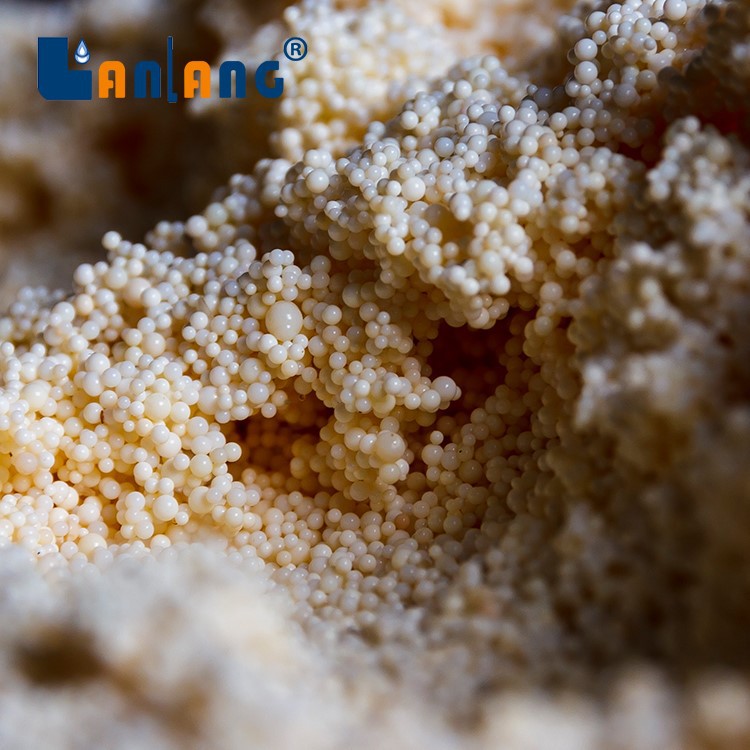

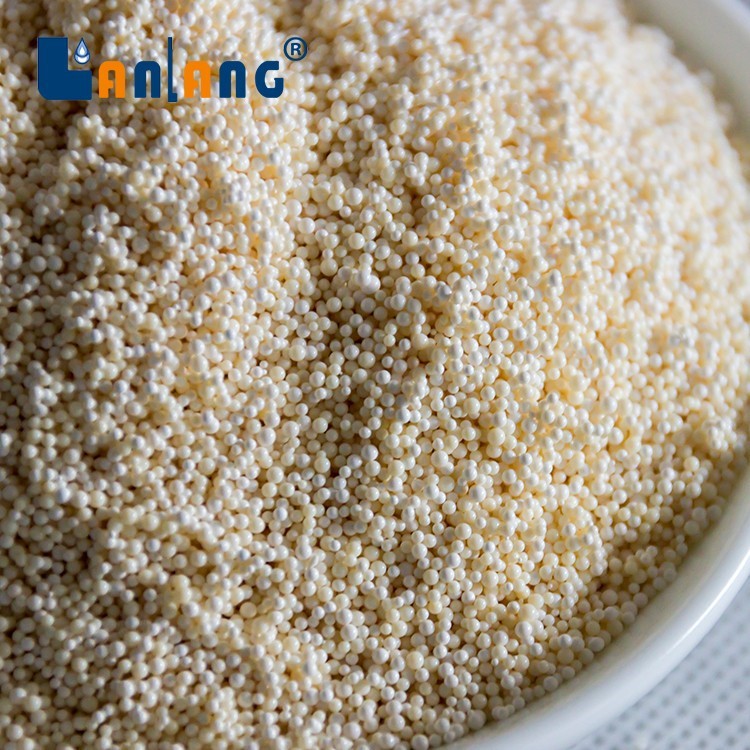

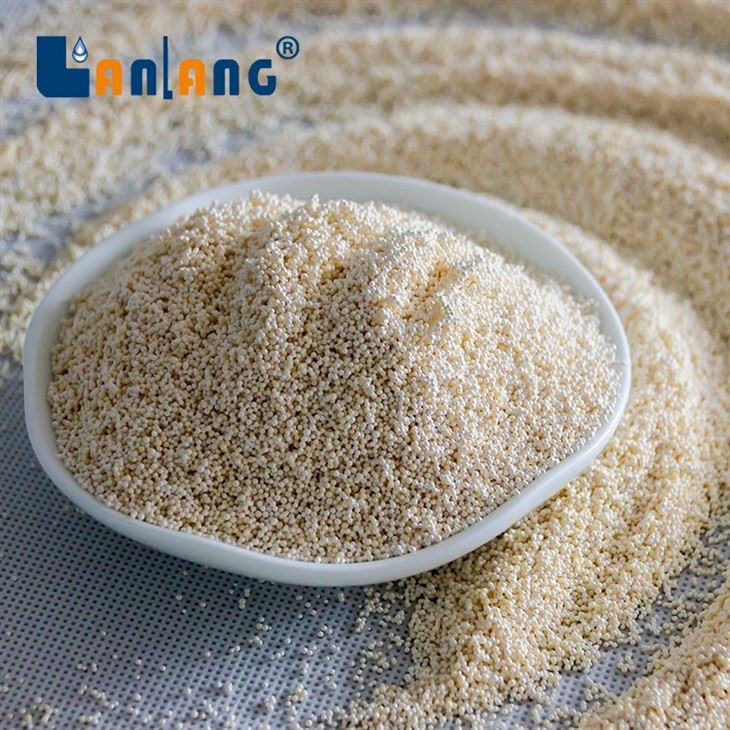

Macroporous aminophosphonic chelating resin
Lanlang® TY CH530 is a highly efficient and versatile chelate resin that is designed to remove a variety of cations from water solutions. This resin is based on a unique copolymer of styrene and divinylbenzene that is characterized by its strong and stable macroporous structure. The resin features weakly acidic aminophosphonic (-CH2NHCH2PO3-) functional groups that bind to a wide range of cations, even in highly concentrated solutions.
Used for brine softening for chlor alkali industry
Lanlang® TY CH530 is ideal for use in a wide range of applications, including water treatment, metal ion separation, and ion exchange. The resin is particularly effective at removing heavy metal ions from industrial wastewater, such as lead, copper, cadmium, and nickel. The resin can also be used for selective ion separation in various chemical and pharmaceutical processes.


Competitive Equivalents
- Purolite S940
- DowDowex XZ87480
- Resin Tech SIR-500
- Bayer Lewatit TP260
- Amberlite IRC747
- Duolite C467
- Sybron
- Mitsubishi Diaion
- Jacobi Resinex CH-12
- Ion exchange India Indion BSR
Basic Features
Application: |
Brine softening in the chlor alkali industry |
Polymer matrix structure: |
Macroporous polystyrene crosslinked with divinylbenzene |
Appearance: |
White, spherical beads |
Functional Group: |
Aminophosphonic acid |
Ionic form as shipped: |
Na+ |
Hydraulic Properties
|
|
|
PRESSURE LOSS |
BACKWASH |
|
The graph above shows the expected pressure loss of Lanlang TY CH530 per foot of bed depth as a function of flow rate at various temperatures. |
The graph above shows the expansion characteristics of Lanlang TY CH530 as a function of flow rate at various temperatures. |
Certification
