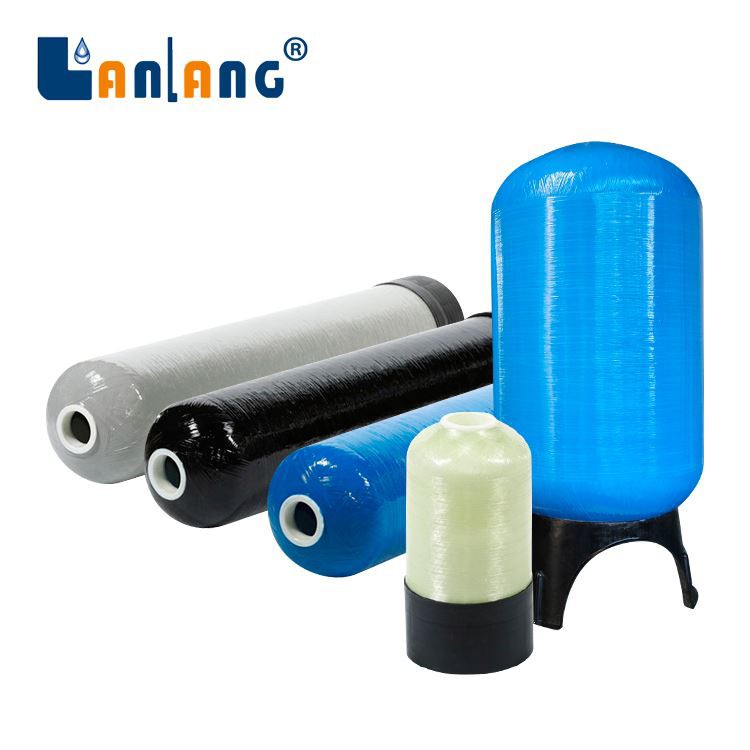

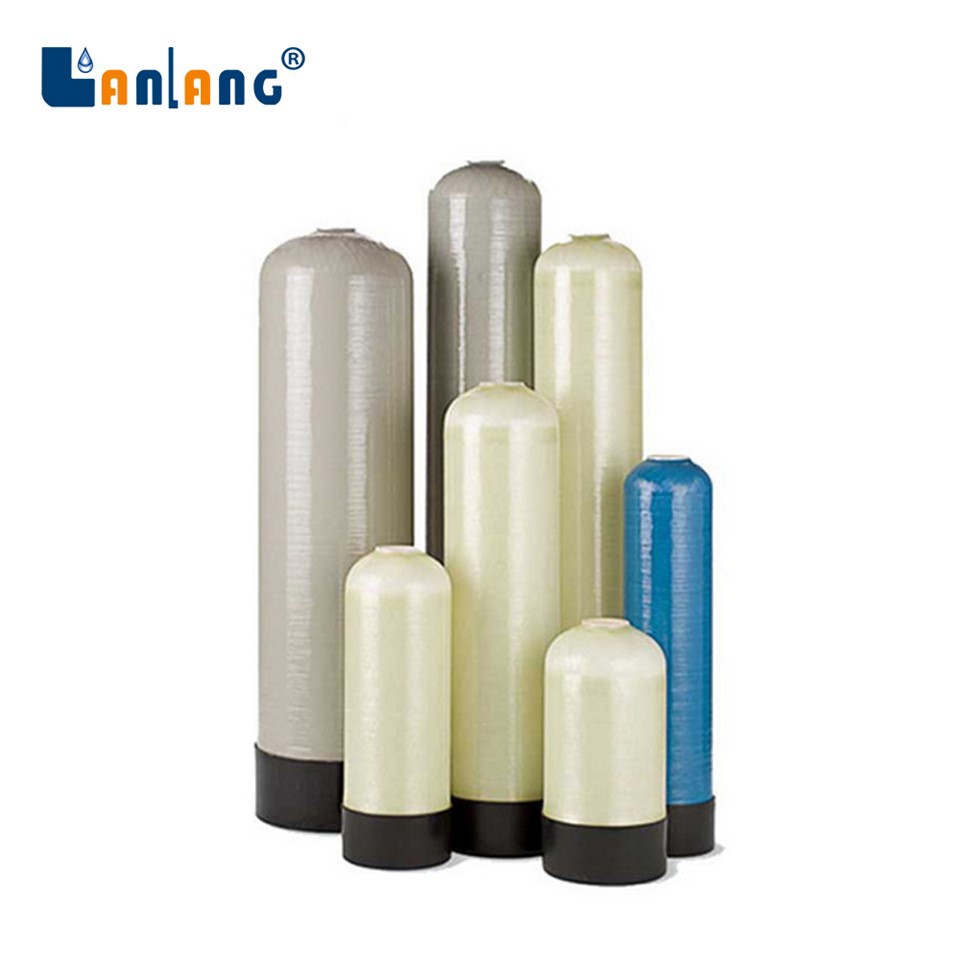

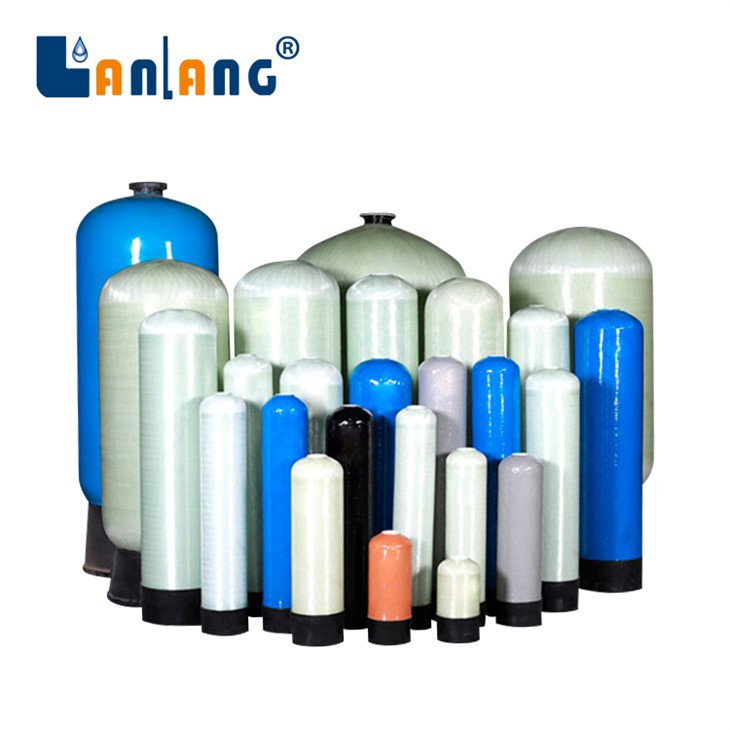

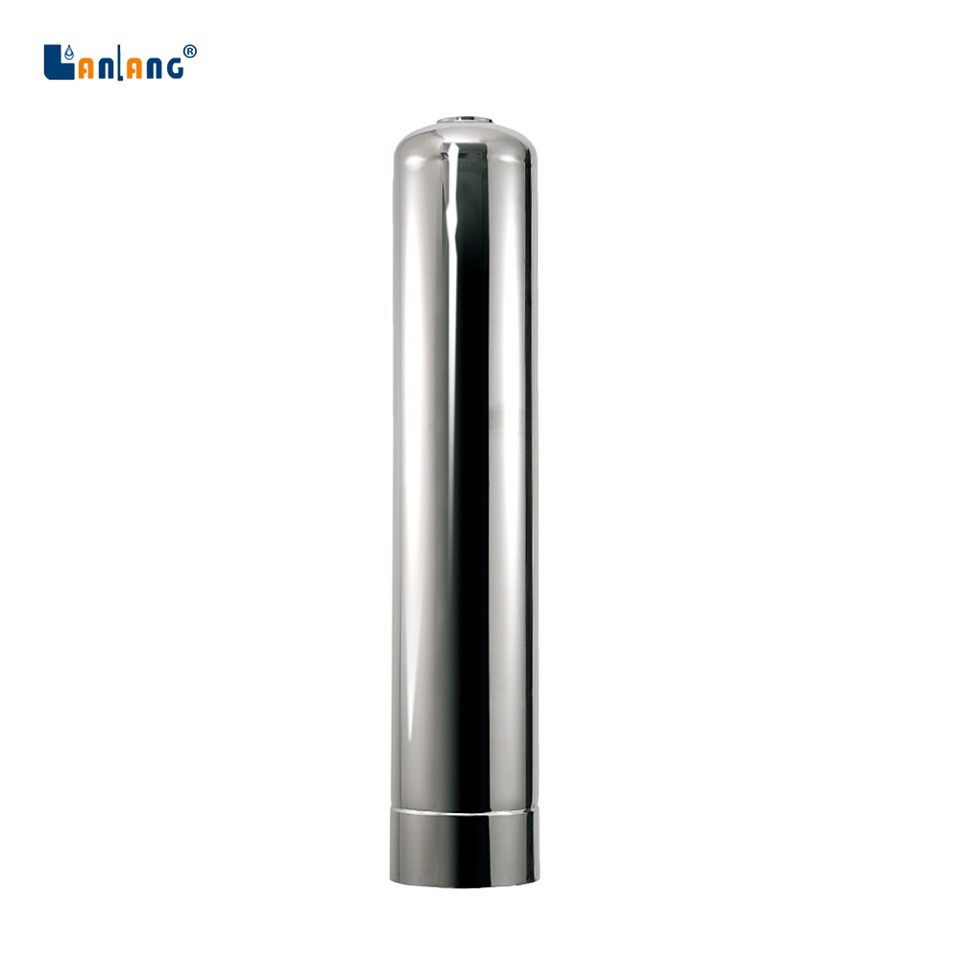

Media Filter Tank
What is Media Filter Tank?
A media filter tank is a specialized equipment used in various industrial and water treatment processes. This tank incorporates a filtering medium, such as sand, gravel, or other granular substances, to effectively remove impurities and particles from liquids passing through it. The design of the media filter tank allows for the separation of unwanted materials, ensuring the desired quality of the treated liquid. Commonly employed in applications like wastewater treatment, swimming pool filtration, and industrial processes, media filter tanks play a crucial role in maintaining the cleanliness and quality of liquids in diverse settings.
Advantages of Media Filter Tank
Efficient particle removal
The filtering medium within the tank, often composed of sand or other granular materials, effectively traps and removes particles, impurities, and suspended solids from liquids, ensuring a high level of water clarity.
Versatility in application
Media filter tanks find versatile applications across different industries, including municipal water treatment, industrial processes, and swimming pool filtration, showcasing their adaptability to diverse liquid purification needs.
Long service life
The robust construction of media filter tanks, coupled with the durability of the filtering medium, contributes to an extended service life. This longevity results in cost-effectiveness and reduced maintenance requirements over time.
Consistent flow rates
These tanks provide a steady and consistent flow of treated liquid by preventing clogging and ensuring uniform distribution of the liquid through the filtering medium. This feature is crucial for maintaining operational efficiency in various processes.
Why Choose Us?
R&D
Invests heavily in R&D, continuously improving their product offerings and staying at the forefront of new material technology. dedication to innovation means customers can benefit from cutting-edge solutions.
Customization services
Provide customization services to meet specific customer requirements, ensuring that clients receive products that exactly fit their needs.
Experienced team
The company employs a team of experienced professionals with expertise in new material technologies, ensuring that their products and services are backed by deep knowledge and technical proficiency.
24h online service
We try and respond to all concerns within 24 hours and our teams are always at your disposal in case of any emergencies.
Types of Media Filter Tank
Sand media filters
Sand media filters utilize specially graded sand as the filtering medium to effectively trap and remove particles and impurities from water.
Commonly used in municipal water treatment plants and swimming pool filtration systems, sand media filters are known for their efficiency in fine particle removal.
Activated carbon filters
Activated carbon filter tanks employ activated carbon as the filtering medium, which is highly effective in adsorbing organic compounds, chlorine, and other impurities from water.
Widely utilized in water purification for improving taste and odor, activated carbon filters are also employed in industrial processes where the removal of specific chemicals is crucial.
Multimedia filters
Multimedia filters combine different types of filtering media, such as sand, anthracite, and garnet, in distinct layers within the tank. Each layer serves a specific purpose in removing various-sized particles.
These filters are versatile and find applications in diverse industries, providing enhanced particle removal and extended service life compared to single-media filters.
Diatomaceous earth filters
Diatomaceous earth filters utilize the skeletal remains of microscopic diatoms as the filtering medium. These filters are highly efficient in removing fine particles and are often used in beverage production, swimming pool filtration, and industrial processes.
Diatomaceous earth filters offer a high level of clarity in the treated liquid and are known for their effectiveness in applications where fine filtration is essential.
Gravel filters
Gravel filters use layers of gravel or other coarse materials as the filtering medium. These filters are particularly effective in the preliminary removal of large particles from water.
Commonly employed in pre-filtration stages of water treatment processes, gravel filters help protect downstream equipment from potential damage caused by larger contaminants.
Biosand filters
Biosand filters are a type of slow sand filter designed for household water treatment. These filters not only remove particles but also promote the growth of beneficial microorganisms on the filter media, contributing to biological purification.
Often used in decentralized water treatment systems in rural areas, biosand filters are cost-effective and sustainable solutions for improving water quality.
The Manufacturing Process of Media Filter Tank
Design and engineering
The process begins with the design and engineering phase, where the specifications of the media filter tank are defined. This includes determining the tank's dimensions, capacity, and the type of filtering media to be used.
Material selection
Once the design is finalized, appropriate materials are selected for constructing the tank. Common materials include corrosion-resistant metals like stainless steel or fiberglass for the tank body, and durable materials such as sand or activated carbon for the filtering medium.
Tank fabrication
The tank body is fabricated based on the design specifications. This may involve welding stainless steel panels or molding fiberglass components, depending on the chosen material. The fabrication process ensures the tank's structural integrity and durability.
Filtering media installation
The selected filtering media, such as sand or activated carbon, is carefully installed inside the tank. The layering or placement of the media is critical to ensure effective filtration and optimal performance of the media filter tank.
Assembly of components
Various components, such as inlet and outlet pipes, valves, and pressure gauges, are assembled onto the tank. These components facilitate the proper functioning of the media filter tank and allow for the controlled flow of the liquid through the filtering medium.
Quality control and testing
The assembled media filter tank undergoes rigorous quality control checks. This may include pressure testing, leak detection, and inspections to ensure that the tank meets the specified standards and is free from defects.
Surface treatment and coating
Depending on the material used, the tank may undergo surface treatment or coating processes to enhance corrosion resistance and increase the lifespan of the equipment. This step is particularly crucial for tanks used in harsh or corrosive environments.
How to Choose Media Filter Tank
Filtration requirements
Identify the specific contaminants or particles you need to remove from the liquid. Different filtering media are effective for different types and sizes of particles. Understanding your filtration requirements is crucial in selecting the appropriate media filter tank.
Flow rate and capacity
Determine the required flow rate and capacity of the media filter tank. This depends on the volume of liquid to be treated and the desired turnover rate. Ensure that the chosen tank can handle the expected flow without compromising filtration efficiency.
Type of filtering media
Consider the type of filtering media suitable for your application. Common media include sand, activated carbon, diatomaceous earth, and multimedia combinations. Each type has specific advantages and is effective against particular contaminants. Choose the media that best aligns with your filtration goals.
Application and industry
Understand the specific industry or application where the media filter tank will be used. Different industries have unique requirements, and factors such as water quality standards, environmental regulations, and operational conditions can influence the choice of the filter tank.
Material and construction
Select the appropriate material for the tank construction based on the liquid being treated and the environmental conditions. Stainless steel, fiberglass, and other corrosion-resistant materials are common choices. Consider the durability, chemical resistance, and longevity of the material.
Maintenance requirements
Evaluate the maintenance needs of the media filter tank. Some tanks may require more frequent cleaning or media replacement than others. Choose a system that aligns with your maintenance capabilities and schedule.
Footprint and installation
Assess the available space for installing the media filter tank. Consider the footprint and dimensions of the tank to ensure it fits within the designated area. Additionally, evaluate the ease of installation and any specific requirements for plumbing or connections.
How to Install Media Filter Tank
Site preparation
Choose a suitable location for the media filter tank that allows easy access for maintenance and meets any regulatory requirements. Ensure the foundation is level, stable, and capable of supporting the weight of the tank when filled with filtering media and water.
Check components
Before installation, inspect all components of the media filter tank, including pipes, valves, and the tank itself, to ensure they are in good condition and free from damage. Verify that you have all the necessary tools and equipment for installation.
Positioning the tank
Carefully position the media filter tank in the designated location. Ensure that it is level and securely placed on the prepared foundation. If applicable, connect the tank to any existing plumbing or piping systems.
Inlet and outlet connections
Connect the inlet and outlet pipes to the appropriate ports on the media filter tank. Use proper fittings and sealants to prevent leaks. Follow the manufacturer's guidelines for pipe sizes and connections.
Plumbing connections
Connect any additional plumbing components, such as bypass lines, pressure gauges, and control valves, according to the specifications provided by the manufacturer. Ensure that the plumbing is secure and properly aligned.
Fill with filtering media
Depending on the type of media filter tank, fill it with the appropriate filtering media, such as sand, activated carbon, or other specified materials. Follow the recommended guidelines for the depth and distribution of the filtering media within the tank.
Initial backwashing
Perform an initial backwashing cycle to remove any loose particles and debris from the filtering media. This helps ensure optimal performance and prevents clogging.
Operational testing
Start the filtration system and monitor the media filter tank's operation. Check for any leaks, irregularities, or fluctuations in pressure. Adjust valves and settings as needed to achieve the desired flow rate and filtration efficiency.
Calibration and adjustments
Calibrate pressure gauges and other monitoring instruments as per the manufacturer's recommendations. Make any necessary adjustments to control settings based on the specific filtration requirements of your application.
Commissioning
Once the media filter tank is successfully installed and operational, commission the entire water treatment system. Confirm that the treated water meets the desired quality standards and that the system is functioning as intended.
Things to Note When Using Media Filter Tank
Proper sizing
Ensure that the media filter tank is appropriately sized for the intended flow rate and capacity. Proper sizing is crucial to maintain efficient filtration and prevent issues such as clogging or bypass.
Regular maintenance
Implement a regular maintenance schedule to clean or replace the filtering media as needed. Regular backwashing, especially for sand filters, helps remove accumulated particles and maintain the filter's effectiveness.
Monitor pressure levels
Keep an eye on the pressure levels within the filter tank. A significant increase in pressure may indicate a clogged or exhausted filtering medium. Regularly check and record pressure readings to identify any anomalies.
Backwashing procedures
Follow the recommended backwashing procedures provided by the. Backwashing helps clean the filter medium by reversing the flow of water, dislodging trapped particles. The frequency of backwashing depends on the type of filtering media and the level of contaminants in the water.
Inlet and outlet maintenance
Inspect and maintain the inlet and outlet pipes, valves, and connections regularly. Ensure that these components are free from leaks and blockages, as they play a crucial role in the proper functioning of the media filter tank.
Water quality testing
Periodically test the treated water quality to ensure that the media filter tank is effectively removing contaminants. Water quality testing helps verify that the system is operating within the desired parameters and meeting the required standards.
Installation and orientation
Install the media filter tank in accordance with the guidelines. Pay attention to the recommended orientation, positioning, and plumbing connections. Proper installation ensures optimal performance and longevity of the equipment.
Bypass considerations
In some situations, it may be necessary to include a bypass system. This allows for the diversion of water when maintenance or repairs are being conducted on the media filter tank, preventing disruptions to the overall water treatment process.
Chemical compatibility
Be mindful of the chemical compatibility of the filtering media and tank materials with the substances in the water being treated. Incompatibility can lead to deterioration of the media or tank, affecting performance and potentially causing damage.
Environmental conditions
Consider the environmental conditions surrounding the media filter tank. Factors such as temperature, humidity, and exposure to corrosive substances can impact the tank's performance and longevity. Choose materials and coatings that are suitable for the specific environment.
Components of Media Filter Tank
Tank body
The tank body is the main structural component that contains the filtering medium. It is usually constructed from materials such as stainless steel, fiberglass, or other corrosion-resistant materials to withstand the operational environment.
Filtering medium
The filtering medium is the material inside the tank that captures and removes particles and impurities from the liquid passing through. Common filtering media include sand, activated carbon, diatomaceous earth, gravel, or a combination of different materials in multimedia filters.
Distribution system
The distribution system ensures uniform flow of liquid through the filtering medium. It typically includes pipes, distributors, and collection headers to evenly distribute the liquid across the entire surface of the filtering medium.
Inlet and outlet pipes
Inlet and outlet pipes are essential for the entry and exit of the liquid into and out of the media filter tank. These pipes are connected to the distribution system and play a key role in controlling the flow rate and direction.
Valves
Valves are used to regulate the flow of liquid through the media filter tank. Common types of valves include control valves, backwash valves, and drain valves. These valves help control the direction of flow, enable backwashing, and facilitate maintenance.
Pressure gauges
Pressure gauges are installed to monitor the pressure levels within the tank. An increase in pressure may indicate the need for backwashing or maintenance. Pressure gauges help operators assess the condition of the filtering medium and overall system performance.
Backwash system
A backwash system is designed to clean and rejuvenate the filtering medium by reversing the flow of liquid through the tank. This system typically includes a backwash pump, backwash valve, and associated piping to remove accumulated particles and debris from the filtering medium.
Support gravel or underdrain system
In certain types of media filter tanks, especially those using sand as the filtering medium, a support gravel layer or underdrain system is employed. This system helps distribute the backwash water evenly during the cleaning process.
Air scour system
Some media filter tanks may incorporate an air scour system to enhance the backwashing process. Air is introduced to agitate the filtering medium, helping to dislodge trapped particles and improve the efficiency of the backwash.
Control panel
The control panel contains the necessary instrumentation and controls for operating and monitoring the media filter tank. It may include switches, indicators, and programmable logic controllers (plcs) to automate and optimize the filtration process.
Monitor pressure levels
Regularly check and record pressure levels using the pressure gauges installed on the filter tank. A significant increase in pressure may indicate a clogged or exhausted filtering medium, prompting the need for maintenance.
Backwashing
Implement a regular backwashing schedule to clean the filtering medium. Backwashing involves reversing the flow of water through the tank to dislodge and flush out accumulated particles. The frequency of backwashing depends on factors such as water quality and flow rates.
Inspect valves and piping
Periodically inspect all valves, including inlet, outlet, backwash, and drain valves, for proper operation. Check for leaks and ensure that the valves are functioning correctly to control the flow of water through the filter tank.
Inspect inlet and outlet pipes
Regularly inspect the inlet and outlet pipes for any signs of damage, corrosion, or blockages. Ensure that the pipes are properly connected and free from obstructions that could impede the flow of water.
Check for media degradation
Inspect the filtering medium for signs of degradation, compaction, or channeling. Depending on the type of medium used (e.G., sand, activated carbon), replacement or replenishment may be necessary to maintain effective filtration.
Inspect the tank body
Examine the tank body for any signs of corrosion, structural damage, or wear. Ensure that the tank is securely mounted and that there are no external factors compromising its integrity.
Clean and inspect distributors
If applicable, inspect the distribution system, including distributors and collection headers. Clean any accumulated debris that could impact the uniform distribution of water over the filtering medium.
Air scour system maintenance
If the media filter tank includes an air scour system, ensure that it is functioning properly. Inspect air compressors, air distribution systems, and diffusers to maintain their effectiveness in agitating the filtering medium during backwashing.
Perform water quality testing
Periodically test the treated water quality to ensure that the media filter tank is effectively removing contaminants. Water quality testing helps verify that the system is operating within the desired parameters and meeting required standards.
The primary purpose of a media filter tank is to remove impurities, particles, and contaminants from a liquid, typically water. These tanks are designed to enhance the quality of the treated liquid by employing a specific filtering medium, such as sand, activated carbon, or diatomaceous earth. The filtering medium effectively captures and retains suspended solids, debris, and undesirable substances, preventing them from passing through and ensuring that the treated liquid meets specified quality standards.
Media filter tanks play a crucial role in various industries, including municipal water treatment, industrial processes, swimming pool filtration, and wastewater treatment. The process of filtration within these tanks helps improve water clarity, eliminate harmful substances, and protect downstream equipment from potential damage. Overall, the primary goal is to provide a reliable and efficient method for purifying liquids in diverse applications.
What Types of Filtering Media are Commonly Used in Media Filter Tanks
Activated carbon
Activated carbon is known for its exceptional adsorption properties, making it effective in removing organic compounds, chlorine, and certain chemicals from water. Activated carbon filters are often used in water purification processes and the beverage industry.
Diatomaceous earth
Diatomaceous earth, composed of the skeletal remains of microscopic diatoms, is used as a filtering medium in some media filter tanks. It is highly effective in capturing fine particles and impurities, making it suitable for applications such as swimming pool filtration and beverage production.
Multimedia combinations
Multimedia filters use a combination of different filtering media in distinct layers. This may include a mix of sand, anthracite, and garnet, each layer serving a specific role in particle removal. Multimedia filters are versatile and effective in various applications.
Sand
Sand is one of the most traditional and widely used filtering media. It is effective in removing larger particles and impurities from water. Sand media filters are commonly employed in municipal water treatment and industrial processes.
Anthracite
Anthracite is a type of coal that is commonly used as a filtering medium in multimedia filters. It provides a high surface area for particle capture and is effective in water treatment applications.
Gravel
Gravel is often used as a support medium or as part of the filtration process in some media filter tanks. It helps prevent the blocking of pipes and ensures even distribution of water during backwashing.
Zeolite
Zeolite is a natural or synthetic material with a porous structure, providing an effective medium for ion exchange and the removal of certain contaminants. It is used in various water treatment applications.
Garnet
Garnet is a high-density media that is sometimes used in multimedia filters. It helps to improve the filtration efficiency and is resistant to attrition.
Microglass
Microglass is a synthetic material with a high filtration efficiency, particularly for smaller particles. It is used in specialized applications where fine filtration is required.
Can you Explain the Filtration Process Within a Media Filter Tank
Inlet of untreated liquid: The untreated liquid, which may contain suspended solids, debris, and contaminants, enters the media filter tank through the inlet pipe.
Distribution system: The distribution system evenly distributes the incoming liquid over the surface of the filtering medium. This ensures uniform contact between the liquid and the media for effective filtration.
Passage through filtering medium: The liquid passes through the filtering medium inside the tank. The type of filtering medium, such as sand, activated carbon, or diatomaceous earth, determines the mechanism of filtration.
Sand filters: Sand filters operate through mechanical trapping and physical adsorption. Larger particles are trapped in the sand bed, while smaller particles may be captured by the adsorption capacity of the sand.
Activated carbon filters: Activated carbon operates through adsorption, where organic compounds and certain chemicals adhere to the carbon surface. It is effective in removing impurities that contribute to taste and odor.
Diatomaceous earth filters: Diatomaceous earth filters use the fine porous structure of diatom skeletons to capture extremely small particles. The earth forms a filter cake on the surface, trapping particles during the filtration process.
Capturing and retention of particles: The filtering medium captures and retains suspended solids, impurities, and contaminants present in the liquid. This process can occur through various mechanisms, including mechanical trapping, adsorption, and the formation of a filter cake.
Outlet of treated liquid: The filtered or treated liquid exits the media filter tank through the outlet pipe. The liquid is now free from the captured impurities, resulting in improved water quality.
Maintenance and backwashing: Over time, the filtering medium may become clogged with captured particles, reducing its efficiency. To address this, media filter tanks often undergo a backwashing process. During backwashing, the flow of water is reversed, dislodging and flushing out accumulated debris from the filtering medium. This helps restore the medium's effectiveness.
Disposal of captured particles: The captured particles and impurities removed during backwashing are typically directed to a drain or waste disposal system, preventing them from re-entering the treated liquid.
In Which Industries are Media Filter Tanks Commonly Employed
Municipal water treatment
Media filter tanks are widely used in municipal water treatment plants to purify water before distribution to consumers. These tanks help remove suspended solids, sediment, and impurities to meet water quality standards.
Industrial processes
Numerous industrial processes require water for cooling, manufacturing, and other purposes. Media filter tanks are employed to filter water used in these processes, protecting equipment and ensuring the quality of industrial water.
Swimming pool filtration
Media filter tanks play a crucial role in swimming pool filtration systems. They remove debris, dirt, and microorganisms from pool water, contributing to a clean and safe swimming environment.
Wastewater treatment
Both industrial and municipal wastewater treatment facilities use media filter tanks to remove pollutants and suspended solids from wastewater before it is discharged or subjected to further treatment.
Agricultural irrigation
In agricultural irrigation systems, media filter tanks are utilized to filter water before it reaches crops. These tanks help prevent clogging of irrigation equipment and ensure that water applied to crops is free from particles.
Beverage production
The beverage industry employs media filter tanks to purify water used in the production process. These tanks help maintain water quality, ensuring the taste and quality of beverages.
Aquaculture
Media filter tanks are used in aquaculture systems to maintain water quality for fish and aquatic organisms. They help remove excess nutrients and particles, creating a suitable environment for aquaculture operations.
Oil and gas industry
In the oil and gas industry, media filter tanks are used to filter water used in various processes, such as hydraulic fracturing and drilling. They help remove suspended solids and contaminants from water resources.
Decentralized water treatment
Media filter tanks are employed in decentralized settings, such as rural communities or construction sites, for on-site water treatment. They provide a cost-effective solution for purifying water from local sources.
Electronics manufacturing
The electronics manufacturing industry utilizes media filter tanks to filter water used in cooling systems and other manufacturing processes. These tanks help maintain the purity of water critical for electronic component production.
Chemical processing
Media filter tanks are employed in chemical processing industries to filter water used in various chemical reactions and processes. They help ensure that the water meets specific purity requirements.
Pharmaceutical manufacturing
The pharmaceutical industry utilizes media filter tanks to achieve high-purity water for pharmaceutical manufacturing processes. These tanks contribute to meeting stringent quality standards in pharmaceutical production.
FAQ
As one of the leading media filter tank manufacturers and suppliers in China, we warmly welcome you to wholesale media filter tank in stock here from our factory. All customized products are with high quality and competitive price.
