TY CH520 Macroporous Iminodiacetic Acid Chelating Resin

TY CH520 Macroporous Iminodiacetic Acid Chelating Resin

Lanlang ® TY CH520 is a sort of chelating resin which has weakly acidic iminodiacetic acid [-CH2N-(CH2OOH)2] in the styrene / DVB copolymer with special macroporous structure. This product can fix and chelating one or several kinds certain cation in a great range even in the solution with high content.

product-716-286

Products Description



Lanlang ® TY CH520 is a high-quality chelating resin that is specially designed for use in a variety of water treatment applications. It is composed of a styrene/DVB copolymer with a unique macroporous structure and features weakly acidic iminodiacetic acid [-CH2N-(CH2OOH)2] in its composition. This advanced structure allows for excellent chelating and fixing capabilities for one or several types of cations in a wide range of environments, even those with high concentrations of dissolved materials.
With Lanlang ® TY CH520, you can effectively remove harmful metals, such as calcium, magnesium, copper, and iron, from water sources. This can help to protect your equipment and systems from corrosion and reduce the potential for damage or downtime caused by scaling or build-up. The unique macroporous structure of this chelating resin also makes it highly effective at removing or reducing unwanted impurities, including organic molecules, bacteria, and other particles.


TY-CH530-

Lanlang ® TY CH520 is easy to use and can be incorporated into a variety of water treatment systems, including both residential and commercial applications. Our chelating resin is designed to provide long-lasting performance while maintaining stable and consistent chelation performance even after repeated use. This makes it a prime choice for use in high-performance water treatment systems for a wide range of applications.



Lanlang ® TY CH520 is a reliable and cost-effective solution to your water treatment needs. Our team of expert technicians is dedicated to providing you with the highest quality products and services available. Contact us today to learn more about how Lanlang ® TY CH520 can improve your water treatment process and protect your equipment and systems from harmful contaminants.It is used mainly to separate and recover the precious metals ion, especially for the secondary refining of salt brine when the content of Strontium is near or higher than the content of calcium in the process of ion membrane alkaline producing. CH520 is also used to remove cooper, nickel, cobalt, zinc from waste water.

Product details 2

Competitive Equivalents

  • Purolite MTS9300
  • DowDowex XZ95843
  • Resin Tech SIR-300
  • Bayer Lewatit TP207/208
  • Amberlite IRC748
  • Duolite
  • Sybron SR-5
  • Mitsubishi Diaion CR 11
  • Jacobi Resinex  CH-20
  • Ion exchange India Indion SIR



Basic Features



Application:

Removal or recovery of heavy metals from process streams or waste waters

Brine softening in the chlor alkali industry

Polymer matrix structure:

Macroporous polystyrene crosslinked with divinylbenzene

Appearance:

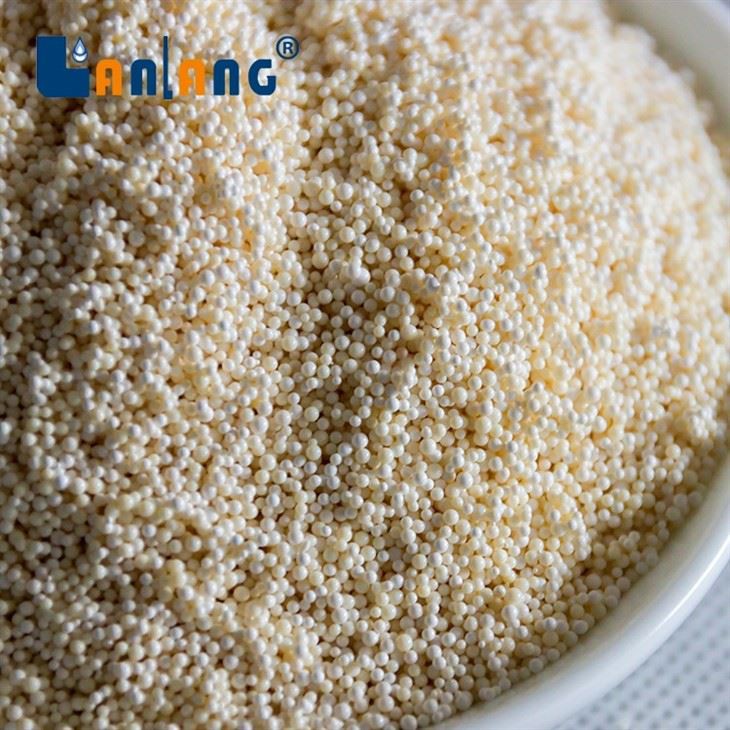

Light yellow, opaque, spherical beads

Functional Group:

Iminodiacetic acid

Ionic form as shipped:

Na+



Hydraulic Properties



product-623-391



product-640-402

PRESSURE LOSS



BACKWASH

The graph above shows the expected pressure loss of Lanlang TY CH520 per foot of bed depth as a function of flow rate at various temperatures.



The graph above shows the expansion characteristics of Lanlang TY CH520 as a function of flow rate at various temperatures.
