TY CH560 Macroporous Bis-Picolylamine Chelating Resin

TY CH560 Macroporous Bis-Picolylamine Chelating Resin

Lanlang ® TY CH560 is a sort of chelating resin which has weakly basic Bis-Picolylamine on the styrene and DVB copolymer with special macroporous structure. TY CH560 has unique functionality which makes it extremely selective for transition metal ions (such as copper and nickel) from the solution at low PH (<2). With high concentration of sulfuric acid, metals like cobalt, nickel, iron and zinc could be eluted. Copper would still stay on the resin. Using 2N ammonium hydroxide, copper could be eluted as well.

product-716-286

Products Description



Lanlang ® TY CH560 is a high-quality chelating resin that contains a specially designed copolymer structure of styrene and DVB, with weakly basic Bis-Picolylamine. This unique combination of materials makes TY CH560 ideal for removing transition metal ions, such as copper and nickel, from solutions at a low pH level below 2.


The macroporous structure of TY CH560 ensures efficient contact between the resin and the solution, resulting in a highly selective and efficient ion exchange process. This resin has been rigorously tested and proven to be effective in a variety of industrial and laboratory settings.
TY CH560 is designed to meet the highest standards of performance, durability, and reliability. As a result, it is widely used in applications such as wastewater treatment, industrial effluent treatment, metal recovery, and acid mine drainage treatment.


In summary, Lanlang ® TY CH560 is a premium quality chelating resin that is specifically designed for removing transition metal ions from low pH solutions. With its unique materials combination and superior performance properties, TY CH560 is a powerful tool for a wide range of applications in industries and laboratories around the world.

TY-CH530-

Product details 2

Competitive Equivalents

  • Purolite
  • DowDowex
  • Resin Tech
  • Bayer Lewatit
  • Amberlite
  • Duolite
  • Sybron
  • Mitsubishi Diaion
  • Jacobi Resinex
  • Ion exchange India Indion



Basic Features



Application:

Separation of Cobalt/Nickel, copper removal

Polymer matrix structure:

Macroporous polystyrene

Appearance:

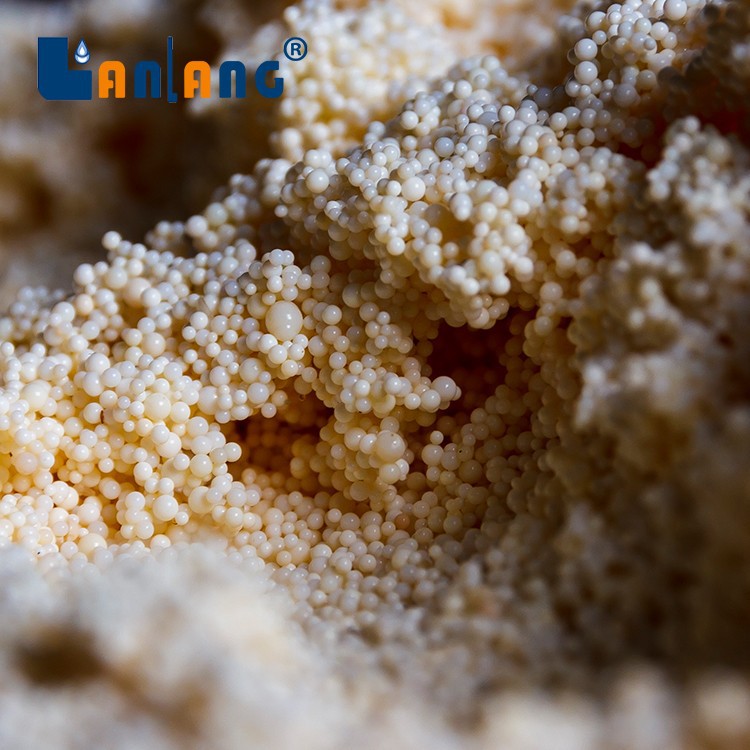

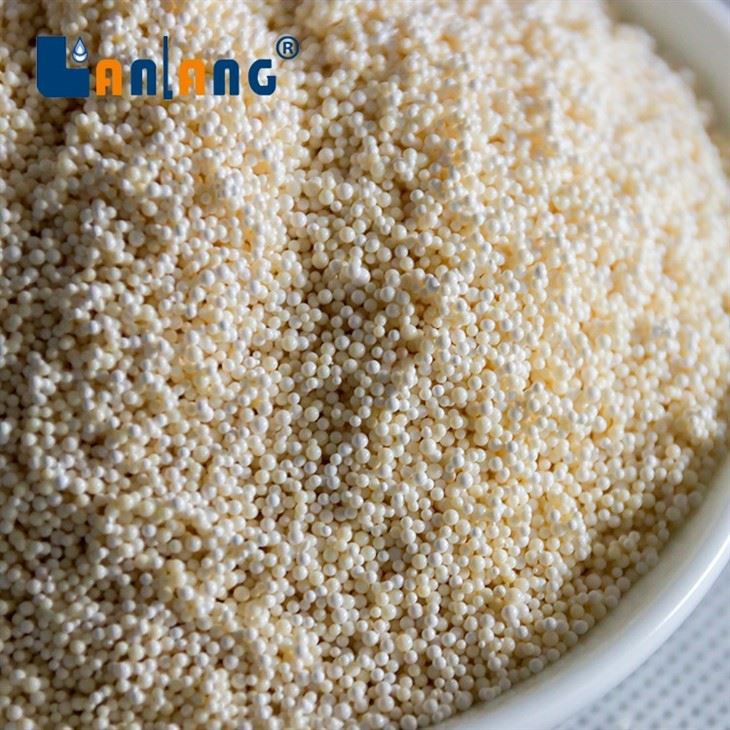

Light yellow to dark brown, spherical beads

Functional Group:

Bis-Picolylamine

Ionic form as shipped:

SO42-



Physical and Chemical Properties



NO.

ITEM

SPEC

1

Copper loading capacity (g/l)

≥30

2

Moisture retention (%)

55-65

3

Particle size range (%)

0.315-1.25 mm≥95

4

Uniformity coefficient

<1.7

5

Bulk Density (g/l)

650-750

6

Specific gravity (g/l)

1050-1150



Certification
