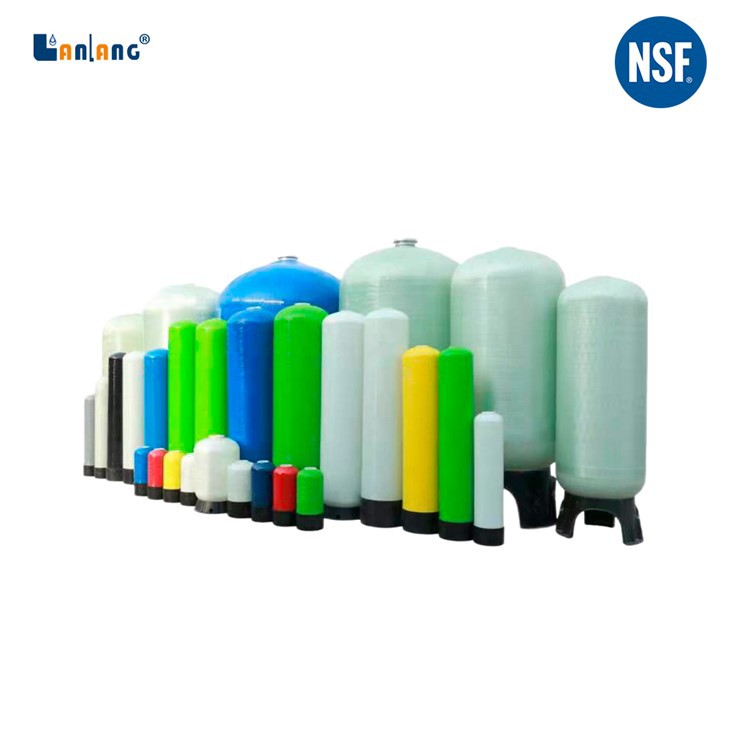

Water Softener 1054 Water Filtration Fiberglass Tank
video
Water Softener 1054 Water Filtration Fiberglass Tank

Water Softener 1054 Water Filtration Fiberglass Tank

Lanlang FRP tanks are widely used in RO system,food, printing, chemical, pharmaceutical industries etc.
Send Inquiry

FRP2

Products Description



Lanlang® FRP Tank is a kind of nonmetallic composite which is made of resin and fiberglass are made of high quality composite material HDPE liner,with blow molding technique, it provides continuous seamless inner liner shell.



FRP tanks are widely used in RO system,food, printing, chemical, pharmaceutical industries etc.

.

Name

FRP Tank / FRP vessel

Working pressure

150PSI (10.5 bar)

Operating temperature

1-49ºC (34-121 ºF)

Maximum vacuum

127 mm Hg

Minimum ambient temperature

-27ºC (-17ºF)

Bursting pressure

42 bar (times)

Fatigue cycle

Lifetime

Shell Material

FRP

Liner Material

HDPE food grade



FRP2 2

Product Specification



Model No

Dia.X Height(mm)

Inch Size

Top Open

Bottom Open

817

Ø200×439

817 inch

2.5 inch

N/A

835

Ø200×898

835 inch

2.5 inch

N/A

844

Ø200×1130

844 inch

2.5 inch

N/A

935

Ø225×900

935 inch

2.5 inch

N/A

1054

Ø250×1391

1054 inch

2.5 inch

N/A

1252

Ø300×1333

1252 inch

2.5 inch

N/A

1265

Ø300×1663

1265 inch

2.5 inch

N/A

1354

Ø325×1376

1354 inch

2.5 inch

N/A

1465

Ø350×1655

1465 inch

2.5 inch

N/A

1665

Ø400×1648

1665 inch

2.5 inch

N/A

1865

Ø450x1805

1865 inch

4 inch

N/A


2069


Ø500×1770


2069 inch

4 inch

N/A

N/A

4 inch


2472


Ø600×1920


2472 inch

4 inch

N/A

N/A

4 inch


3072


Ø750×1930


3072 inch

4 inch

N/A

N/A

4 inch

3672

Ø900×2120

3672 inch

4 inch

4 inch

4072

Ø1000×2170

4072 inch

4 inch

4 inch

4872

Ø1200×2130

4872 inch

6 inch

6 inch

6072

Ø1500×2250

6072 inch

6 inch

6 inch

6386

Ø1600×2420

6386 inch

6 inch

6 inch



Certification
