Hot Sale Series FRP Membrane Housing

Hot Sale Series FRP Membrane Housing

Lanlang® Hot Sale Series FRP Membrane Housing products cover working pressures of 300PSI (2.1MPa)and 450PSI(3.1Mpa), and can accommodate 1-7 membrane elements, suitable for various international standard membranes.
Products Description



FRP membrane housing 14

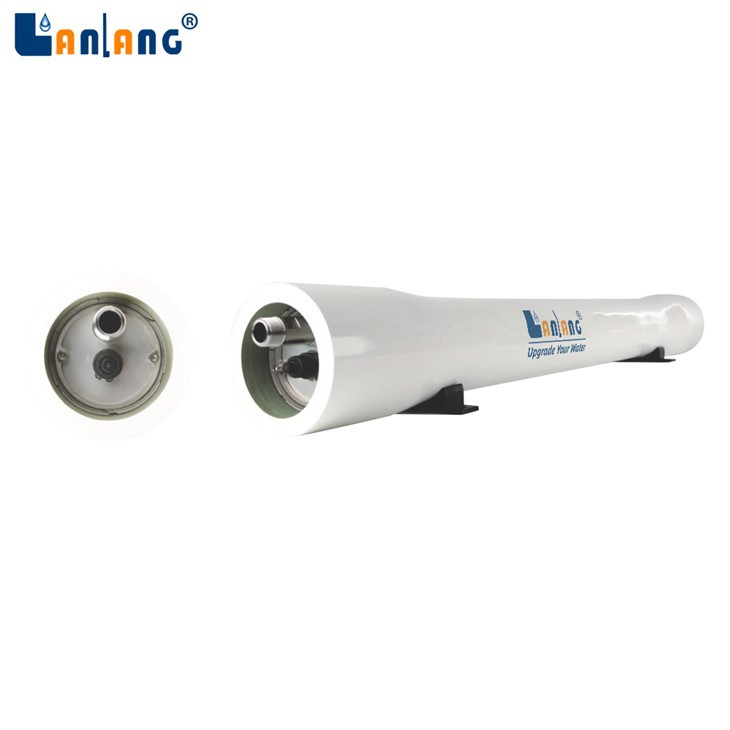

Lanlang® FRP Membrane Housing



Lanlang® Hot Sale Series FRP Membrane Housing products cover working pressures of 300PSI (2.1MPa)and 450PSI(3.1Mpa), and can accommodate 1-7 membrane elements, suitable for various international standard membranes such as DOW, HYDRANATICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc. Suitable for various complex media environments, the standard color is white, and other optional colors are available.



     product-348-143                                product-343-131

Model

FMHFR80S300/FMHFR80S450

FMHFR40C300

Membrane  Quantities

L (mm)

P (mm)

S (mm)

L (mm)

S (mm)

1

1435

1120

715

1135

600

2

2453

2136

1731

2151

1551

3

3649

3152

2747

/

4

4485

4168

3763



5

5501

5184

4779



6

6517

6200

5795



7

7533

7216

6811



Feed/Concentration Port

1.5″(DN40)

3/4″NPT (BSPP & F)

Permeate Port

1″ NPT

1/2″ NPT



Product Application





FRP membrane housing are widely used for RO system and industrial water treatment systems.

♦ Electronics industry

♦ Industrial enterprise

♦ Desalination of seawater

♦ Beverage manufacture

♦ Medical pharmacy

♦ Alcoholic beverages
