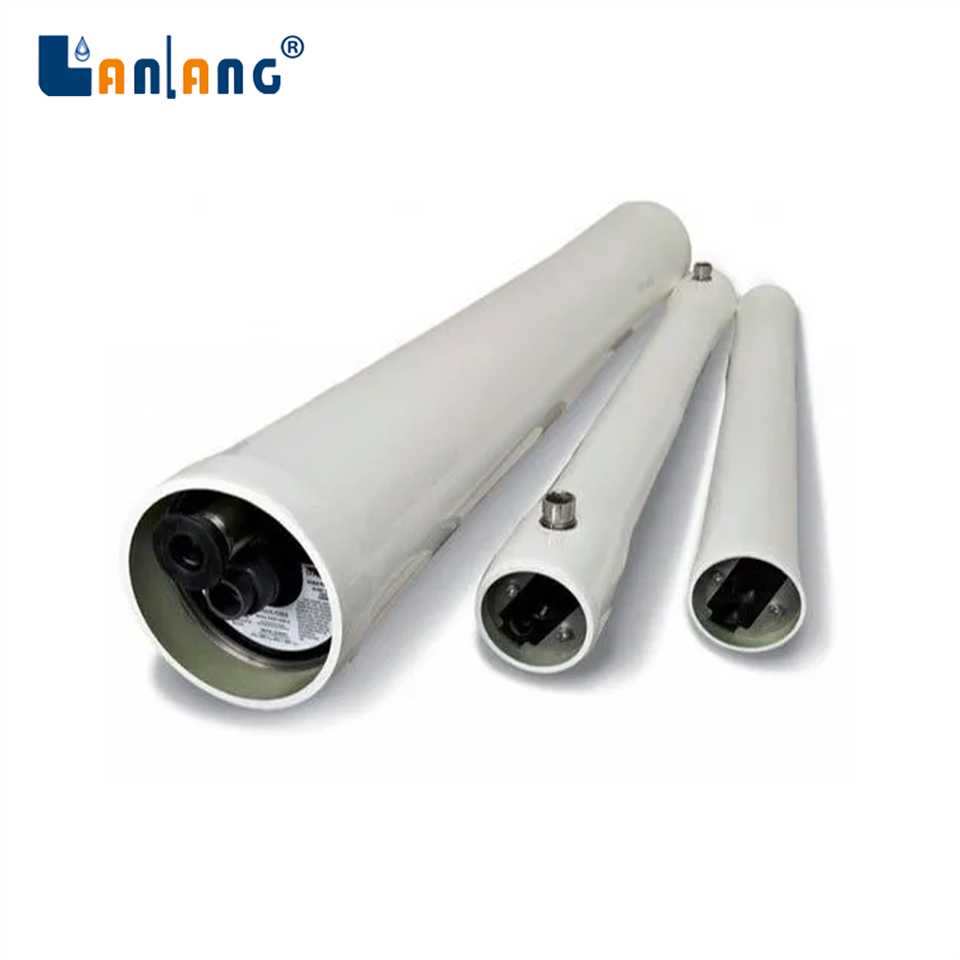

8040 Fiber Glass RO Membrane Housing

Excellent and reliable intrinsic quality
The products are automatically wound by microcomputer control, and the main materials are epoxy resin and fiber materials through special processing, so that the finished products in the degree of pressure resistance, temperature resistance, corrosion resistance to ordinary steel, plastic and other materials can not be compared with the advantages.

Excellent insulation properties
Glass steel membrane shell. At room temperature, the thermal conductivity is generally in the range of 0.15-1.36W (m.k), about 1/200. Its thermal insulation properties are incomparable to metal materials. This characteristic is of great benefit to the reverse osmosis membrane in the membrane shell, and plays a role in that the external temperature has little effect on the membrane.

Outstanding corrosion resistance
After special curing treatment, the combination ratio of glass fiber and epoxy resin forms a natural corrosion resistant product, the inner surface is smooth and the coating has good stability to the low concentration of acids, alkali, salt, oil and other solvents. The seawater and microorganisms entering the shell can be effectively inhibited. Long-term use without corrosion.

Structural design
The barrel body, head and slot of the membrane shell are strictly laid out and the calculation details are optimized to ensure the safety of the structure and ensure the safety and stability of the structure under long-term pressure.
The optimized design of the concentrated water side opening can meet the necessary safety pressure of four side openings for one head, and enhance the variability during installation.

Component reliability
The end plate is an important part of the membrane shell assembly. The material of the end plate of our company is fiber reinforced molding plastic, which has high strength, good pressure resistance and high pressure impact resistance.

The seal design is professionally designed "V+X" ring with O-type end plate seal ring to ensure that it is water-tight in the low and high temperature range.
The sealing design of the side opening is a combination of L-shaped drum circular pads, which ensures that the side opening mouth plays a better sealing role in the case of Angle deviation.
The tightening of the side opening adopts the up-lift type tightening, which makes it more adjustable.
Referring to the actual aluminum alloy plate in ASME, the outer aluminum alloy stoppers are distributed in the groove, and the locking nuts control the sides of the aluminum plate to make the pressure safer.

High quality product overall performance

The internal structure of excellent performance is safe and reliable.

The excellent combination of supporting parts makes the sealing pressure performance higher.

Excellent external surface treatment, so that the product in any hot and humid environment is still as new.

Domestic products that are not inferior are to some extent better than foreign brand products.

The universal performance of the product can match the domestic and foreign reverse osmosis membrane series.

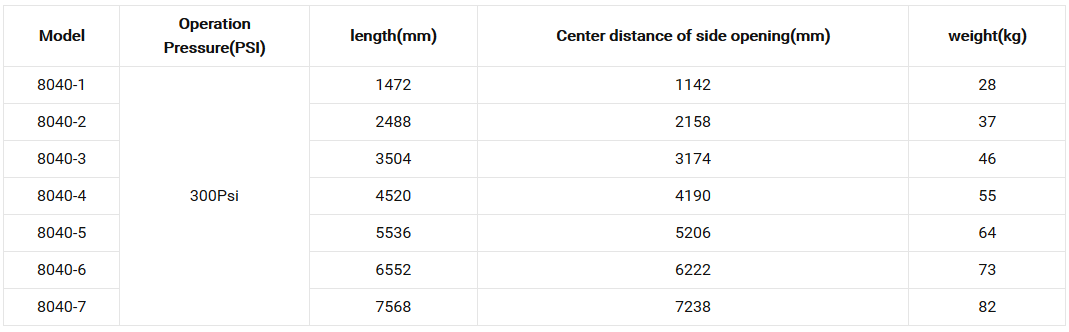

(1) Connection: end opening or side opening
(2) Length: 1 core,2 core,3 core,4 core,5 core,6 core,7 core (8040, 8080, 80120, 80160...)
(3) Maximum working pressure :300PSI,400PSI,450PSI,600PSI,800PSI,1000PSI,1200PSI
(4) Operating temperature :-7℃ to 49℃
(5) Standard color: white
