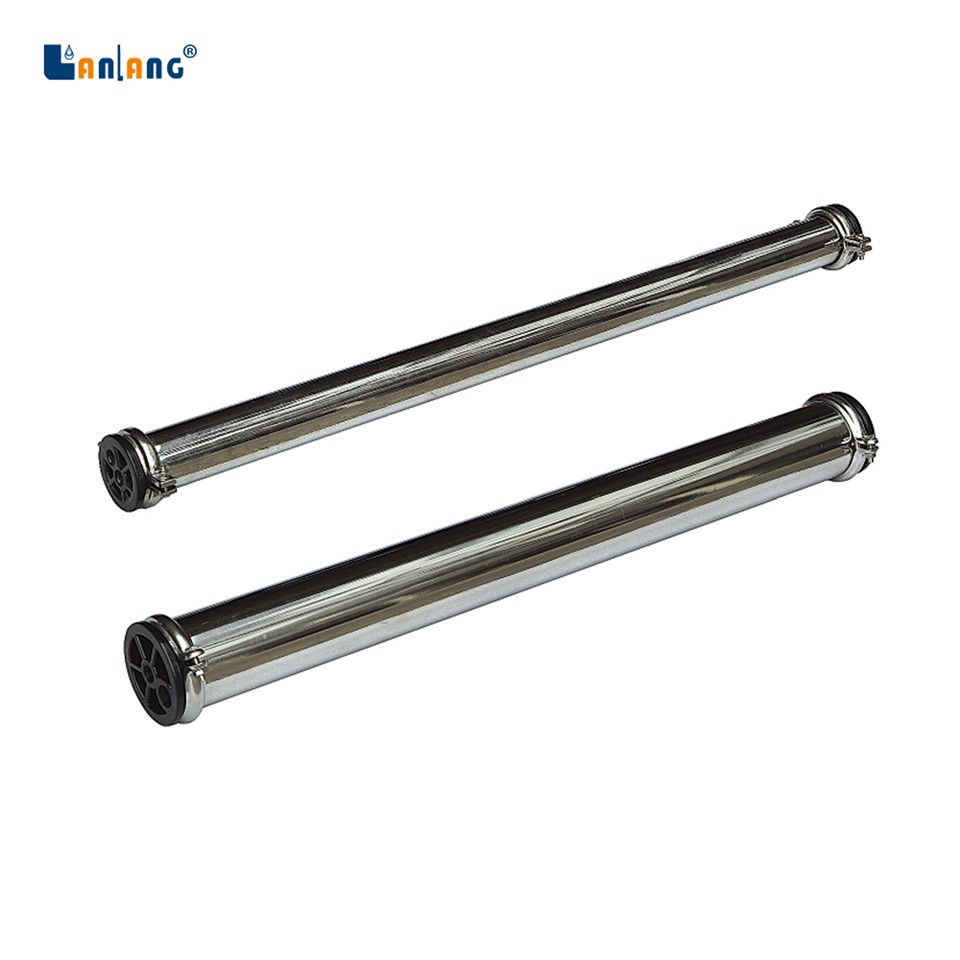

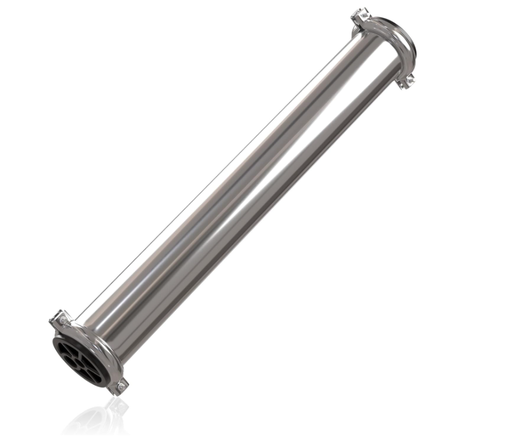

4040 Stainless Steel RO Membrane Housing
video
4040 Stainless Steel RO Membrane Housing

4040 Stainless Steel RO Membrane Housing

Lanlang SS pressure vessels are the ideal choice for housing 4040 membrane elements, providing exceptional performance under high operating pressure. With these vessels, you can fully leverage the capacity of your membrane elements.
Send Inquiry

101



Product Specification



81



Lanlang SS pressure vessels

Lanlang 4040 SS pressure vessels for housing 4040 membrane elements offer high operating pressure which allow you to take full advantage of the membrane capability. Stainless steel membrane pressure vessels are considered safer and more reliable than PVC membrane pressure vessels.

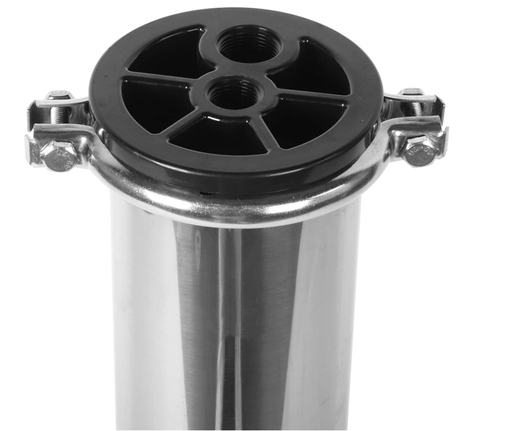

Designed for direct connection to industry-standard 4x40 membrane elements with 3/4" male product water tubes (stinger style). The End-Clamp style end closures are designed for ease of installing and replacing membrane elements, with standard ½" FNPT threaded connections: no special fittings required. Each membrane housing is individually inspected for quality assurance.





MODEL NO

Operation Pressure(PSI)

Material

Length
(mm)

Inner Diameter
(mm)

Inlet

Outlet

FMK-SAY-4021

300

304

605

ø102

1/2" 3/4"

1/2"

FMK-SAY-4040-1

300

304

1087

ø102

1/2" 3/4"

1/2"

FMK-SAY-4040-2

300

304

2103

ø102

3/4"

1/2"

FMK-SAW-4021

300

304

605

ø102

1/2" 3/4"

1/2"

FMK-SAW-4040-1

300

304

1087

ø102

1/2" 3/4"

1/2"

FMK-SAW-4040-2

300

304

2103

ø102

3/4"

1/2"

FMK-SAQ-4040-1

450

304

1154

ø102

1"

3/4"

FMK-SAQ-4040-2

450

304

2170

ø102

1"

3/4"

FMK-SAQ-4040-3

450

304

3186

ø102

11/4"

3/4"



Product Features



  • 300 PSI Maximum Operating Pressure:Allows you to take full advantage of the membrane capability.
  • Versatile:Exceptional Performance in Commercial Reverse Osmosis RO Systems, Nanofiltration NF Systems, Microfiltration MF, and Ultrafiltration UF Membrane Water Treatment Applications.
  • Standard Size:Fits Industry-Standard 4" x40" Membrane Elements .

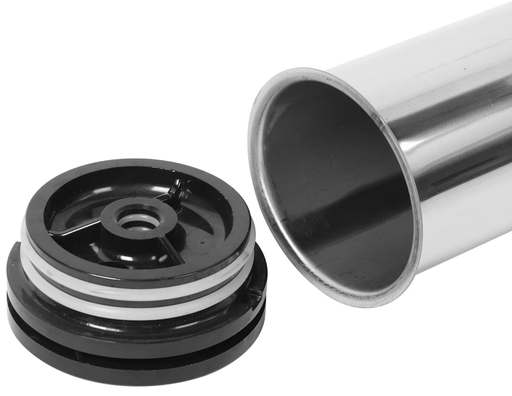

  • Strong & Reliable:316 Stainless Steel Shell with GFN End Caps, Stainless Steel End Clamps, and EPDM seals.
  • Complete Assembly:Each vessel is supplied with the stainless steel vessel shell, two end plugs, clamps with bolts, and O-rings.



7
5



4
